NV6 Differential Pressure Didital Flowmeter
Call for Price
Differential pressure digital flowmeter with high-sensitivity silicon capacitance sensor for detecting micro differential pressure. Supports Pitot or Orifice type flow rate detectors for liquid flow measurement applications. Features a multifunction display and operation unit for flexible output configuration.

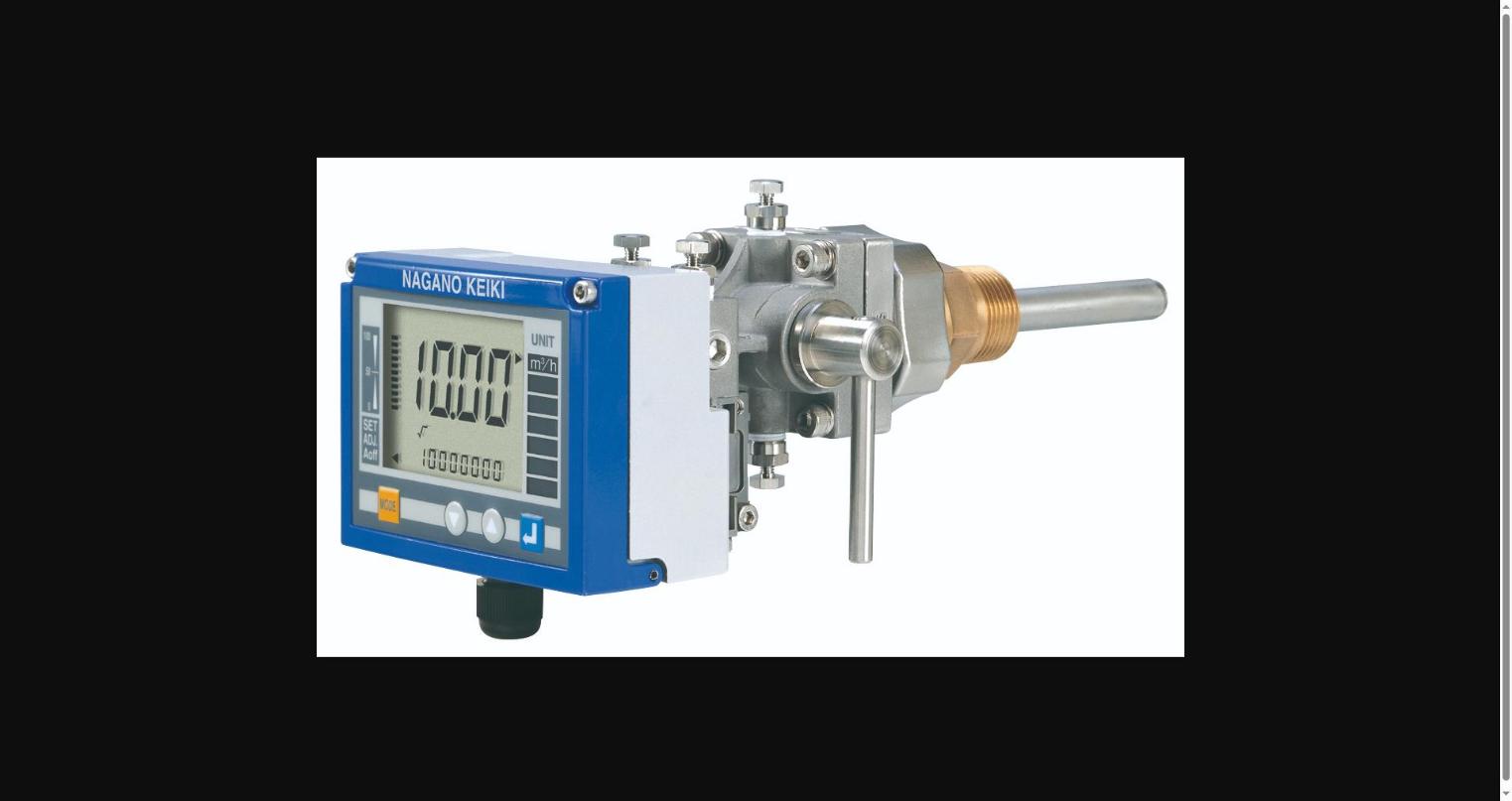

The NV6 is a differential pressure digital flowmeter mounting a high-sensitivity silicon capacitance sensor for detecting micro differential pressure. The flow rate detector can be selected from the Pitot or Orifice type, allowing it to be used for liquid flow rate measurement applications. The product mounts the multifunction display and operation unit enabling selection of the display and output forms according to each individual application.
Features:
– Digital flowmeter detects the differential pressure caused by the flow velocity inside the pipe through the combination of a Pitot tube and digital differential pressure gauge and transmitter.
– The compact and light-weight design allows the flowmeter to be installed on cool and hot water pipes for building air conditioning systems, plant facilities, etc.
– Digital flowmeter detects the differential pressure caused by the flow velocity inside the pipe through the combination of an Orifice and digital differential pressure gauge and transmitter.
– The flowmeter applies diverse process connections (screws, flanges, and fit-in) and can be mounted to field pipes compactly.
– High-sensitivity silicon capacitance sensor for detecting micro differential pressure.
– Multifunction display and operation unit for flexible output configuration.
