NE-IL IO-Link Signal Beacons
Call for Price
NE-IL
IO-Link Signal Beacon
The IO-Link Indicator Series seamlessly installs into IO-Link masters and features multi-color LEDs with a touch sensor and rugged housing.
Product Features
Capacitive touch sensor enables real-time status confirmations
Equipped with a Digital/Analog input function for connecting devices not compatible with IO-Link. The NE-IL acts as an I/O hub, able to send data from sensors to the IO-Link master
Features an M12 connection for quick and easy installations
Status indicator devices connected to an IO-Link master can be controlled collectively
Real-time notification of equipment abnormalities enables operators to perform maintenance right away, reducing bottlenecks and downtime
Up to 7 colors can be emitted to indicate different equipment conditions
High protection rating for operation in harsh environments
Frosted lens displays evenly distributed light for unambiguous indication
Model Specifications
| Model | NE-ILNN-M | NE-ILNB-M
With buzzer |
NE-ILTN-M
With touch |
NE-ILTB-M
With buzzer |
NE-ILXB-M
With buzzer, touch sensor, |
| Size | φ56mm | ||||
| Rated Voltage | 24V DC | ||||
| Mounting Location/ Mounting Direction | Indoors, Upright | ||||
| Protection Rating | IP65 NEMA TYPE ４X, 13 | ||||
| LED Color | Multi-color (Red, Amber, Green, Blue, White, Purple, Cyan) | ||||
| LED Unit Modes | Continuous / Flashing | ||||
| Sound Pressure | － | Typ. 88 dB [8 sound types (Selectable)] |
－ | Typ. 88 dB [8 sound types (Selectable)] |
|
| Conformity Standards | ●EMC Directive (EN 61000-6-4, EN 61000-6-2) ●RoHS Directive (EN 50581) ●UL 508, CSA-C22.2 No. 14 ● FCC Part 15 Subpart B Class A ● KC (KN 61000-6-4, KN 61000-6-2) |
||||
| Connection | M12 connector 5 pins A code | M12 connector 8 pins A code | |||

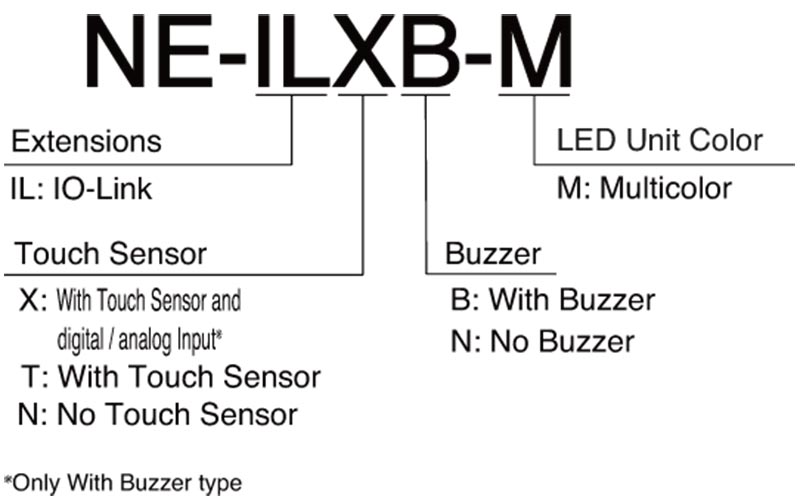

Model Number Configuration
