CM2
COOL MUSCLE 2 is
the AC Servo System that is comibined with a driver, controller, encoder, power supply and PLC function that are necessary for servo control.
COOL MUSCLE 2 is a precise high performance motor that allows you to easily control a servo motor just by plugging it to an power outlet.Call for PriceCM2
Call for Price -

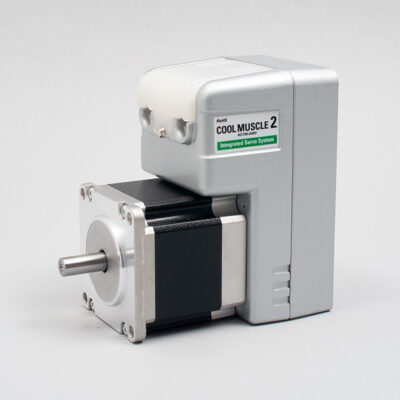

CM2-56B10 Cool Muscle 2 Integrated AC Servo Motor
High-speed 100W AC servo motor — 56mm body, up to 8,000 rpm, with fully integrated driver, controller, encoder and power supply. 100W output, 5,000 rpm rated / 8,000 rpm max, 0.19 N·m rated torque / 0.57 N·m peak torque. Built-in PLC. AC 100–240V AC input. 1.2 kg.
Call for PriceCM2-56B10 Cool Muscle 2 Integrated AC Servo Motor
Call for Price -
CM2-56B20 Cool Muscle 2 Integrated AC Servo Motor
200W high-speed AC servo motor — 56mm body, 8,000 rpm max, double the torque of the 56B10 for demanding high-speed applications. 200W output, 6,000 rpm rated / 8,000 rpm max, 0.32 N·m rated torque / 1.15 N·m peak torque. Built-in PLC. AC 100–240V AC input. 1.7 kg.
Call for PriceCM2-56B20 Cool Muscle 2 Integrated AC Servo Motor
Call for Price -
CM2-60A10 Cool Muscle 2 Integrated AC Servo Motor
100W AC integrated servo motor — 60mm A-Type body, high torque at 3,000 rpm rated for precise industrial positioning. 100W output, 3,000 rpm rated / 5,000 rpm max, 0.32 N·m rated torque / 0.95 N·m peak torque. Built-in PLC. AC 100–240V AC input. 1.1 kg.
Call for PriceCM2-60A10 Cool Muscle 2 Integrated AC Servo Motor
Call for Price -
CM2-60A20 Cool Muscle 2 Integrated AC Servo Motor
200W mid-range AC servo motor — 60mm A-Type, 1.91 N·m peak torque for demanding industrial automation on 200–240V supply. 200W output, 3,000 rpm rated / 5,000 rpm max, 0.64 N·m rated torque / 1.91 N·m peak torque. Built-in PLC. AC 200–240V AC input. 1.3 kg.
Call for PriceCM2-60A20 Cool Muscle 2 Integrated AC Servo Motor
Call for Price -

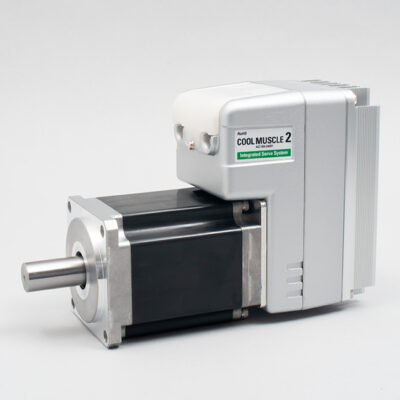

CM2-60A40 Cool Muscle 2 Integrated AC Servo Motor
Flagship 400W AC servo motor — highest output in the CM2 series, 3.82 N·m peak torque for heavy-duty industrial automation. 400W output, 3,500 rpm rated / 5,000 rpm max, 1.09 N·m rated torque / 3.82 N·m peak torque. Built-in PLC. AC 200–240V AC input. 2.0 kg.
Call for PriceCM2-60A40 Cool Muscle 2 Integrated AC Servo Motor
Call for Price -
CM3
Challenge to low-cost innovation
Integrated AC Servo SystemCOOL MUSCLE 3 is the Integrated Servo System equipped with devices that are required for motor control such as a driver and encoder. By eliminating complex functions and reducing them to the essentials, COOL MUSCLE 3 can offer a simpler and more affordable solution.
Call for PriceCM3
Call for Price -
CM3+
Equipped with control IC,
Autonomous distributed servo systemCOOL MUSCLE 3+ is the Integrated Servo System equipped with devices such as driver and controller required for motor control. In addition, a periodic calculation processing function that enables conditional branch processing and calculation processing according to the operating conditions and external environment is implemented.
The motor (CM3+) itself can operate autonomously, contributing to lower costs for the entire system.Call for PriceCM3+
Call for Price -
CM3+-17L50A Cool Muscle CM3+ Integrated Servo Motor
Long-frame Size 17 autonomous servo motor delivering 0.52 N·m rated torque at 5,000 rpm with absolute encoder option. 60W output, 5,000 rpm max speed, 0.52 N·m rated torque / 0.65 N·m peak torque. Absolute encoder option. DC +24V. 435 g.
Call for PriceCM3+-17L50A Cool Muscle CM3+ Integrated Servo Motor
Call for Price -
CM3+-17S50A Cool Muscle CM3+ Integrated Servo Motor
Compact Size 17 short-frame autonomous distributed servo motor with absolute encoder option and 5,000 rpm capability. 60W output, 5,000 rpm max speed, 0.25 N·m rated torque / 0.32 N·m peak torque. Absolute encoder option. DC +24V. 295 g.
Call for PriceCM3+-17S50A Cool Muscle CM3+ Integrated Servo Motor
Call for Price -
CM3+-23L50A Cool Muscle CM3+ Integrated Servo Motor
Flagship 100W Size 23 long-frame servo motor — highest torque in the CM3+ series at 1.50 N·m peak. 100W output, 5,000 rpm max speed, 1.05 N·m rated torque / 1.50 N·m peak torque. Absolute encoder option. DC +24V. 1,050 g.
Call for PriceCM3+-23L50A Cool Muscle CM3+ Integrated Servo Motor
Call for Price -
CM3+-23S50A Cool Muscle CM3+ Integrated Servo Motor
High-speed 80W Size 23 short-frame integrated servo motor with autonomous control IC and 5,000 rpm max speed. 80W output, 5,000 rpm max speed, 0.30 N·m rated torque / 0.45 N·m peak torque. Absolute encoder option. DC +24V. 525 g.
Call for PriceCM3+-23S50A Cool Muscle CM3+ Integrated Servo Motor
Call for Price
