EHS-M1HE
Roll over image to zoom in
Call for Price
| OPERATING VOLTAGES | - DC 12 - 24V |
|---|---|
| AUDIBLE STYLE | - 32 Sounds |
| MOUNTING | - Bracket Mount Included |
| BODY COLOR | - Off-white |
| SOUND STORAGE | - up to 110dB at 1m |
| CHANNEL SELECTION | - A total of 32 sounds stored (See Specifications for list) - 4 Playback modes available to match the environment |
| SOUND CHART | - Bit Mode: Select from 8 channels available with a signal input - Binary Mode: Select from 32 channels available with a signal input |
| CONFORMITY STANDARDS | - UL464 - CSA-C22.2 No. 205-M1983 - FCC Part 15 Subpart B Class 4 - CE (EHS-M1 Only) - RoHS Compliant |
| PROTECTION RATINGS | - IP65 |

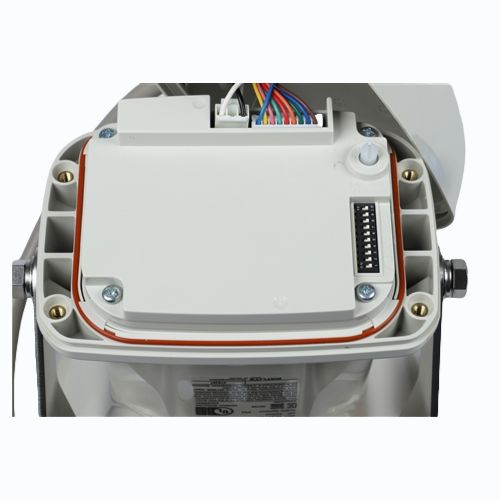

| REMARKS | - Sound Reduction - 32 pre-loaded sounds - Terminal or Cable connection option - NPN or PNP Input compatability - MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing |
| FUNCTIONS | - Vibration Resistance of 4.5G |
DOWNLOAD
EHS-M1_EHS-M2_Specifications.pdf
EHS-M1HE

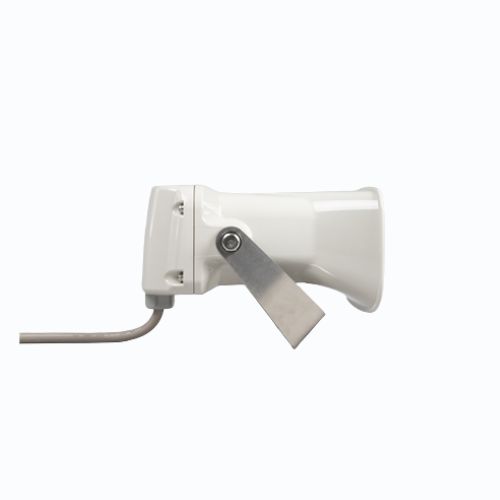

Audible Horn Style Annunciator with 32 Pre-programmed Alarms, Cable, Outdoor Rated
|
