EHV-M1TG
Call for Price
EHV-M1TG

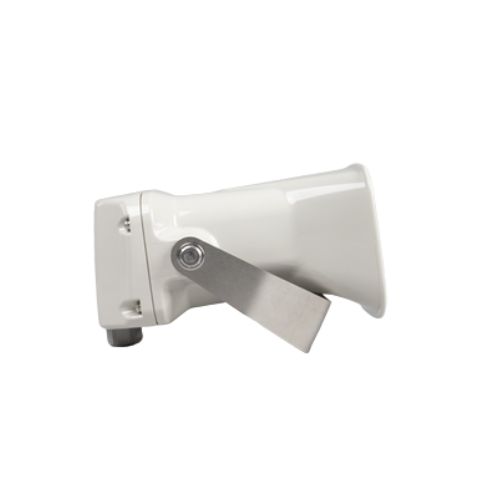

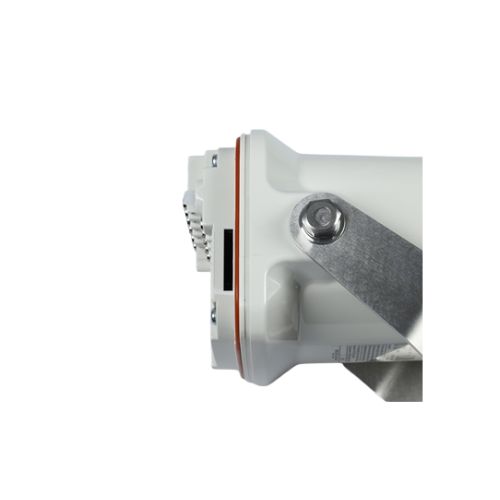

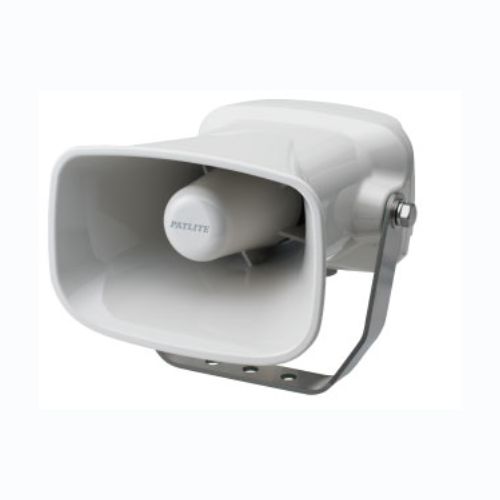

Audible Horn Style Annunciator, MP3 Programmable, 63 Pre-programmed Alarms, Terminal Block, Outdoor Rated
|
orn style, Outdoor rated,12-24V DC, 8-channel field prog. MP3 smart alert alarm w/ 63 pre-programmed sounds and 220 sec. of rec. time w/ MP3 files, 110dB @ 1m, wiring terminal block; Off-white
- Features a strong vibration resistance of up to 4.5G force.
- Designed with a horn-style speaker with a loud sound output of a maximum of 110dB (at 1m).
- 4 playback modes and commands available so that you can tailor your EHV device to suit your application.
Playback Modes: Normal Playback; Input Priority Playback; Hold Playback; Memory Playback
Command Modes: Sound Reduction; Factory; Public Address; Bit/Binary; MP3 ON/OFF; Forced Playback; Group Selection
Terminal Assignment Modes: Playback; STOP; CLEAR; Sound Reduction - 8 channels with 63 pre-programmed sounds (G type alarm group), and 220 seconds of MP3 recording time.
- Can be used with either PNP or NPN transistor driven inputs.
- Field-programmable with custom MP3 files with the use of an SD card (SDV-2GP recommended, sold separately).

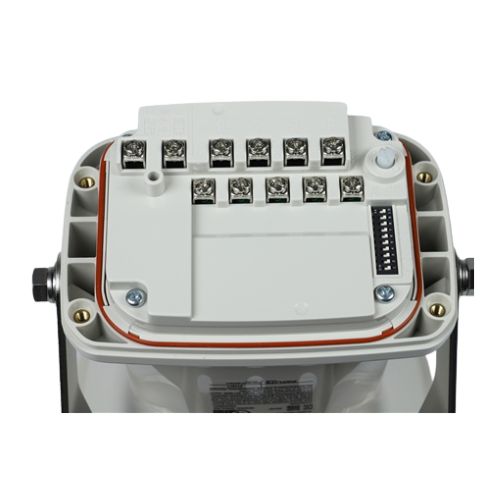

- Terminal block connection.
- UL listed, IP65 rating, complies with RoHS Directive, and conforms to CE requirements.(EHV-M1 Only)
