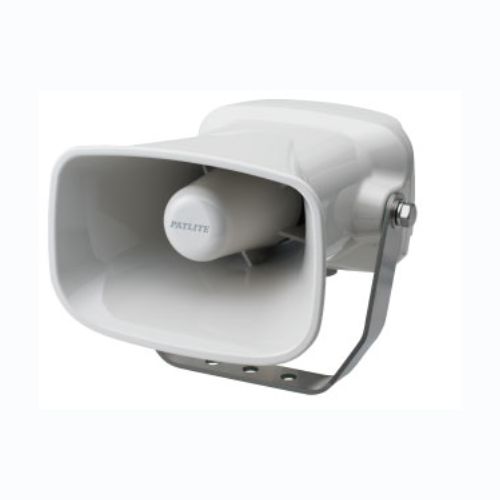

EHS-M2TE

Call for Price

In stock

Product Features

  • 30% smaller footprint compared to the EWH series for space-saving installation.
  • Improved vibration resistance, tolerates up to 4.5G.
  • Delivers high output sound pressure up to 110 dB at 1 meter, despite its compact size.
  • Available with either pre-wired cable or screw terminal connection.
  • Supports PNP and NPN transistor-based input signals.
  • Compliant with the European RoHS Directive.
  • Rated IP65 for dust and water resistance.
  • Supports SD card for in-field melody customization.
  • CE marking applies to DC-powered models.

https://youtu.be/647lE5sKi84



Rated Voltage 12–24 V DC
100–240 V AC
Audible Style Pre-recorded alarms and melodies
Mounting Bracket mount (included)
Body Color Off-white
Volume Up to 95 dB at 1 meter
Adjustable from mute to max
Sound Storage 32 sounds pre-installed (refer to specifications for details)
Channel Selection - Bit Mode: 8 selectable channels via input signal
- Binary Mode: 32 selectable channels via input signal
Conformity Standards - UL 464
- CSA C22.2 No. 205-M1983
- FCC Part 15 Subpart B Class A
- CE (DC models)
- RoHS compliant
Protection Rating IP65
Remarks - Sound volume control
- 32 built-in tones
- Choice of cable or terminal connection
- Compatible with PNP/NPN input
Functions 4.5G vibration resistance


Audible Alarm Horn
EHS

The EHS Audible Alarm Horn delivers one of the loudest outputs in the industry, reaching up to 110 dB at 1 meter. It features two selectable tone modes—“Signal Mode” for clear alerts in noisy environments and “Information Mode” for less harsh notifications. Designed with strong vibration resistance, a 3-level attenuation function, and models supporting both terminal block and cabtyre cable connections. The M1 version supports both NPN and PNP open-collector outputs for flexible control.



  • I/O Control
  • Audible Alarm
  • Tones
  • Melody
  • 110dB
  • Indoor
  • Outdoor
  • IP65
