LR7-02WTNW

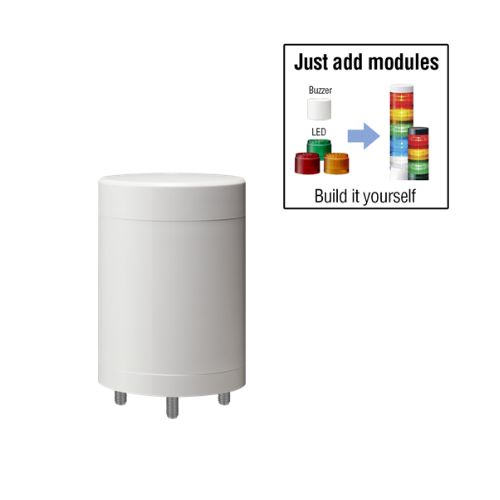

70mm Signal Tower Base Unit, 24V DC, Direct Mount with Terminal, No Flashing Buzzer, Off-white
70mm UL CE IP65 DC 24V, Base Unit, Direct Mount with Terminal, No Flashing Buzzer, Off-white
-
- Ideal for businesses that need to customize signal towers for various customers.
- Removable screwless terminal simplifies the wiring process.
- Rated Voltage: 24V DC
| Operating Ambient Temperature | -20°C – +50°C |
|---|---|
| Operating Humidity Range | 90% RH or less, no condensation |
| Storage Temperature Range | -30°C – +60°C |
| Storage Humidity Range | 90% RH or less, no condensation |
| Mounting Location | Indoor Use |
| Mounting Direction | Upright Position |
| Protection Rating | IP65(IEC 60529) / NEMA TYPE 4X, 13 |
| Environmental Conditions | Upright Position |
| Insulation Resistance | More than 1MΩ at DC500V between the power input lead and chassis |
| Withstand Voltage | AC 500V for 1 minute between terminals and chassis without breaking insulation |
| Transistor Output | NPN / PNP |
| Conformity Standards | – UL 508, CSA-C22.2 No.14 – FCC Part 15 Subpart B Class A – RoHS Directive (EN 50581) – EMC Directive (EN 61000-6-4, EN 61000-6-2) – KC (KN 61000-6-4, KN 61000-6-2) |
