LR6-402LJBW-RYGC
Roll over image to zoom in
Call for Price
LR6-402LJBW-RYGC

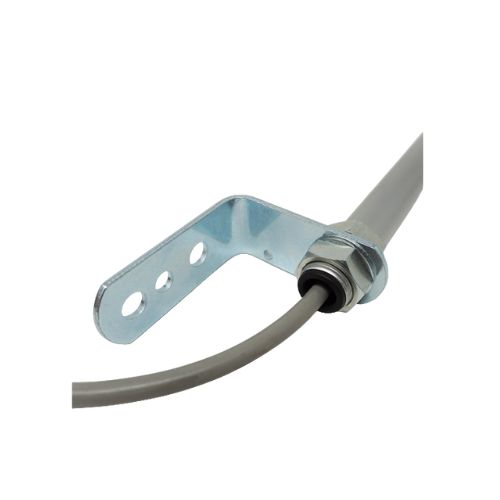

60mm, 4-tier Signal Tower, 24V DC, Pole Mount with L Bracket and Cable, Flashing/Buzzer, Off-white
0mm, 4-tier Stack Light, UL, IP 54, 24V DC, Pole Mount with L Bracket and Cable, Flashing/Buzzer, Off-white Body with Red, Amber Green and White LED
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
- Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR6: 88dB at 1m)
- A sleek, smooth form factor and a rugged body construction for performance in harsh environments.
- A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
| Dimension | 60mm diameter |
|---|---|
| Rated Voltage | 24V DC |
| Number of LED Tiers | 4 |
| LED Colors | Red / Amber / Green / White |
| Buzzer | Typ. 88dB |
| Flashing Rate (with buzzer/flash module only) | 60±2 Flashes per minute |
| Unit Weight | 0.80kg |
| Body Color | Off-white |
| Body/Lens Material | PC |
| Connection | Cable (1000mm) |
| Input Type | PNP/NPN |
| Mounting Style | Pole Mount with L-Bracket |
| Mounting Location | Indoors |
| Mounting Direction | Upright |
| Protection Rating | IP54 / NEMA TYPE 4X, 13 |
| Operating Ambient Temp. | -20℃ to +50℃ |
| Operating Ambient Humidity | Less than 90% RH (No Condensation) |
| Storage Ambient Temp. | -30℃ to +60℃ |
| Storage Ambient Humidity | Less than 90% RH (No Condensation) |
| Insulation Resistance | More than 1MΩ at 500V DC between live part and non-current carrying metallic part |
| Withstand Voltage | 1500V AC applied for 1 minute between live part and non-current carrying metallic part without breaking insulation |
| Conformity Standards | – UL 508, CSA-C22.2 No.14 – EMC Directive (EN 61000-6-4, EN 61000-6-2) – RoHS Directive (EN IEC 63000) – FCC Part 15 Subpart B Class A |
DOWNLOAD
LR_Specifications_24V_DC Type (En).pdf
LR_Specifications_LED Unit (En).pdf
LR_Specifications_Buzzer Unit (En).pdf
